FlowView PRISM™ is ADS’s revolutionary new advanced web application that puts critical data at your fingertips to support management, engineering, and operational decisions within your wastewater collection system. FlowView PRISM connects clients to any monitoring network, delivering near real-time operational intelligence on the status of your wastewater collection system. It is the fastest and easiest way to visualize the condition of your collection system. It offers dynamic analytical functions to fuel discoveries that will lead to the enhanced management of your system.
Access your data and device status on this new cloud-based Collection System Management platform. The home page provides immediate system insight including a map view reflecting flow, level, and rainfall monitors with location and condition details, leaderboard tiles with system status, and quick access to the data vault as well as specialized reports. The intuitive interface allows you to quickly manage alarms, check collection and device status, generate reports, and link third party data through our self-service API to automate and enhance your specific workflow.
Visualize sewer system performance through intuitive dashboards and graphical displays Transform data into actionable insight with powerful analytics Ensure timely performance notifications with configurable alarms for advance notice of developing problems
Visualize sewer system performance through intuitive dashboards and graphical displays
Transform data into actionable insight with powerful analytics
Ensure timely performance notifications with configurable alarms for advance notice of developing problems
Provides an easy and transformative user experience for sewer data management
Collaborate for success by sharing data, reports, and related files among cross-functional groups

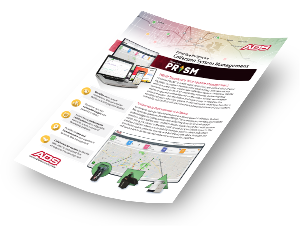

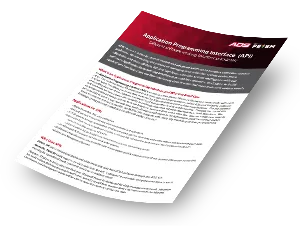

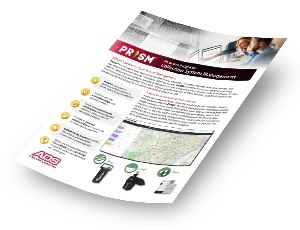

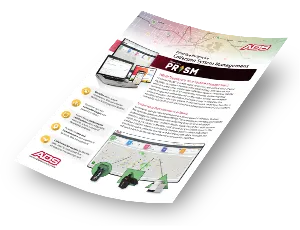

FlowView PRISM Resources
FlowView PRISM FAQS
Q1. What is the URL for FlowView PRISM™?
A1. The URL is: https://www.adsprism.com.
Q2. Are there any PRISM instructional videos available?
A2. Yes. Go to http://www.adsenv.com/videos.
Q3. Should I use a particular internet browser?
A3. You will get the best user experience viewing FlowView PRISM with Google® Chrome® or Firefox®.
Q4. Can I create new User accounts in PRISM?
A4. No. At this time requests for new user accounts must be sent to the ADS® Customer Support Center.
Q5. Can I set PRISM so that the same customer is selected each time I open PRISM?
A5. Yes. You can set a customer as your Favorite so that each time you log in to PRISM that customer will be the one to display. To do this, choose your user name from the upper right corner of the PRISM window and then User Preferences. Select the customer you wish to be your Favorite. Click the star to save this as your favorite customer; a gold star indicates the favorite customer; a hollow star indicates that the customer is not the favorite.
Q6. Can I add a Location from the Home page rather than going to the Customer Editor?
A6. Yes. Select the Action in the bottom left-hand corner of the Map (Home page). Select the Add Location icon.
Q7. Can I create a Composite Location in PRISM?
A7. Yes. Select the Action in the bottom left-hand corner of the Map (Home page). Select the Add Composite Location icon.
Q8. Why did the Collect tile not update a failed collect after an on-demand collect attempt?
A8. The Collect tile only shows the number of monitors that fail to collect during a scheduled PRISM collect.
Q9. How do I create a new Customer?
A9. If you have the appropriate user permissions, select the Customer Editor icon to the right of the Customer drop-down list. Then choose the Add New Customer icon in the lower left.
Q10. Can I change the units of measure for a customer in PRISM? If so, what units are available?
A10. Yes. Units of measure selection are available through the Customer Editor located to the right of the Customer drop-down list. Select the appropriate customer and Edit. The Units drop-down list on the Edit Customer window includes three choices: US Standard MGD (reports depth in inches, velocity in feet per second and flow rate in MGD; US Standard CFS (reports depth in inches, velocity in feet per second and flow rate in CFS) and Metric (reports depth in millimeters, velocity in meters per second and flow rate in liters per second).
Q11. Can time be displayed in the 24-hour format?
A11. Yes. Time can be displayed in either a 12-hour or 24-hour format. Choose Customer Editor icon located to the right of the Customer drop-down list. Select the appropriate customer and Edit. Choose the desired time format from the Time Format drop-down.
Q12. What is the meaning of “Is Active” on the Location Properties page?
A12. When the Is Active option is set to Yes, the associated location is considered active in PRISM. Active locations can be included in scheduled data collects. If Is Active is set to No, the location is removed from any scheduled collect and will only display in the interface if you choose the Display All Locations icon (located in the upper right corner of PRISM, to the left of your user name).
Q13. How do I access graphical data from the Home page?
A13. You can access graphical data from the Home page through the Location Properties page. Select a location through the map’s Search Location option or by choosing the map icon. Once the Location Properties page displays, select the graph symbol located at the bottom of the page to open the Location Dashboard.
Q14. Can I activate ADS flow monitors in PRISM?
A14. Yes. PRISM supports the activation of ADS ECHO™ and RainAlert® III monitors. Open the Location Properties screen for the monitor you wish to activate and select the Activate icon.
Q15. Can I back collect a location?
A15. Yes. Choose the on-demand Collect button from the Location Properties card on the HOME screen; enter the Start and End Dates for your collect period.
Q16. Can I display Alarm Thresholds for alarming locations on the Home screen?
A16. Yes. Click on the graph link on the Alarms Widget, the alarm thresholds now display.
Q17. Can I change the data entity colors on the Location Dashboard?
A17. No. At this time a user cannot change the entity colors.
Q18. Can I select multiple locations to print graphs?
A18. No, not at this time. Each graph must be printed individually.
Q19. Can I plot Iso-Q lines, as well as the pipe overlay in the scattergraph view?
A19. Yes. In the upper right corner of the Location Dashboard, open the Settings panel (three vertical dots) and set the Scattergraph Annotations on for Iso-Q lines and Pipe Overlay.
Q20. Is there a way to plot Rain on top of the hydrograph rather than at the bottom?
A20. Yes. In the upper right corner of the Location Dashboard, open the Settings panel (three vertical dots) and set the Hydrograph Annotations on for Rain on Top.
Q21. Can I zoom in to hydrograph data?
A21. Yes. There are selection buttons for 1 day, 1 week, 1 month at the top of each graph OR you can manually drag the slider below the hydrograph
Q22. How do I get an xml file for my location to import into FlowView PRISM?
A22. If you activate an ADS TRITON+, ECHO or RainAlert III monitor using ADS Qstart 1.9 or higher, an .xml file is generated in the location folder. Use this file to import into PRISM.
Q23. There is a gap in the monitor data. How can I fill in this gap?
A23. Import a csv data file from ADS Profile or Qstart to fill in the data gap or back-collect the data through the Location Properties Card.
Q24. What data is displayed on the Daily Summary Report?
A24. The Daily Summary Report reports the previous days’ Maximum, Minimum and Average depth and velocity data and the previous days’ Maximum, Minimum, Average flow rate and the Total Flow volume.
Q25. How can I see more summary data from the monitoring locations?
A25. Click on the location name on the Data Summary Report. A new screen will open showing minimums, maximums, averages and flow total for the past seven days. You can use the filter icon next to DOWNLOAD to define a new time period to view or change the data entities displayed in the report.
Q26. What is the Uptime Report values based on?
A26. The Uptime Report values are based on the data availability from the previous calendar day for UNIDEPTH, VELOCITY and Qcontinuity.
Q27. Why does my uploaded location xml file not display in PRISM?
A27. To import a new or updated location xml file, you must first upload the file using the Vault > UPLOAD > Location feature. Second locate the imported file and select Import to add the file to the PRISM database.
Q28. Can I import a .LIF file into PRISM?
A28. No. PRISM supports the import of .xml location files only.
Q29. Where can I find the files that I export from the Location Dashboard?
A29. All PRISM exported data files are placed in a folder named dataExports in the Vault.
Q30. Is there a limit to the number of files I can store in the Vault?
A30. No. There is no limit to the number of files a user can store at this time.
Q31. Is there a limit to the file size I can upload to the Vault?
A31. Yes. The file must be less than 20 MB in size.
Q32. What types of files can I upload to the Vault?
A32. There are three categories of files you can upload to PRISM: Files, Location and Data. Select Files to import a document, for example site reports, location pictures, Microsoft® Word® or Excel® documents. Select Location to import a location xml file from Qstart. Select Data to import a csv data file in the ADS file format.
Q33. Can I export the RAIN entity from multiple rain gauges into one Excel data file?
A33. No. Not at this time. Each exported file is stored in individual Excel files.
FlowView PRISM Videos
Proactive Insight for Collection System Management
Instructional Video: How to Import Data in FlowView PRISM
Instructional Video: How to Add a Location in FlowView PRISM
